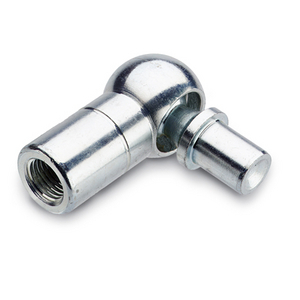

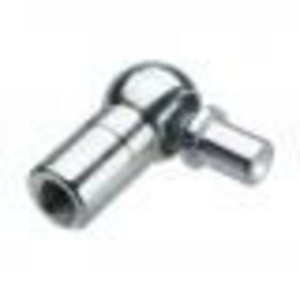

Articulație unghiulară Elesa+Ganter DIN 71802-8-M5-4-BS

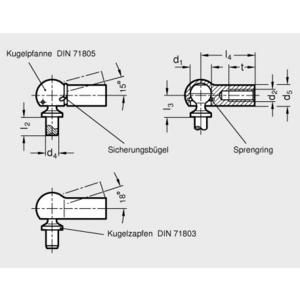

Angled ball joints DIN 71802 consist of a ball socket DIN 71805 and a ball shank DIN 71803. The angle of rotation for the type with safety catch (Types CS, BS) ist 15°, without safety catch (Types C, B) is 18°. For assembly the ball ist pushed through the circlip which acts as a retainer. Should the retaining force (see pull-off force in the table above) between ball and socket not be sufficient, this can be increased by adding a safety catch, which can easily be fitted. To protect the angled ball point, a dust cap GN 710 can be added. The hexagon nut is part of the angled ball joints. Dust caps GN 710 have to be ordered seperately.
