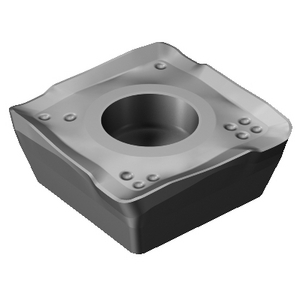

Inserții de frezare Sandvik Coromant 490R-140408M-PM 1130

Designed to fit CoroMill 490 milling cutters, the 490R-140408M-PM 1130 milling insert from Sandvik Coromant delivers outstanding performance in shoulder milling, routing and face milling. Whether for roughing or finishing operations, it meets the demands of professionals seeking reliability and optimum performance.

Features:
This milling insert is specially designed to deliver a clean, precise cut, minimizing finishing requirements. Its 90° main rake angle enables perfectly perpendicular shoulders without skip marks. Thanks to its HC substrate and AlTiCrN PVD coating, it is highly resistant to wear and high temperatures, guaranteeing a long service life. This CoroMill 490 1404 insert can be used to mill steels (including stainless and hardened steels), refractory superalloys and non-ferrous metals.

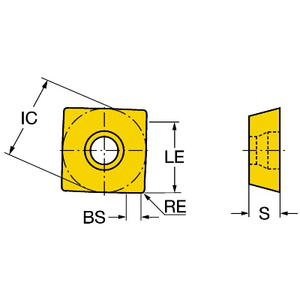

Specifications:
- Compatible milling cutter: CoroMill 490.
- Inscribed circle (IC) diameter: 13.8 mm.
- Number of cutting edges: 4.
- Effective cutting edge length: 10.3 mm.
- Maximum cutting depth (APMX): 10 mm.
- Planishing edge length: 2 mm.
- Beak radius: 0.8 mm.
- Main rake angle: 90°.
- Bevel width of cutting face: 0.16 mm.
- Cutting angle: 23°.
- Direction: straight.
- Grade: 1130.
- Substrate: HC.
- Coating: PVD AlTiCrN.
- Thickness: 3.9 mm.
- Unit weight: 8 g.

Brand information:
Sandvik Coromant is a world leader in the manufacture of cutting tools and machining solutions. Founded in 1942, the brand has established itself as a key player in the industry thanks to its commitment to innovation and performance. With over 1,700 registered patents and a presence in more than 150 countries, Sandvik Coromant stands out for advanced technical solutions that optimize the productivity and precision of machining operations. Our expertise in cemented carbide and high-performance coatings enables us to offer cutting tools adapted to the most demanding requirements.
