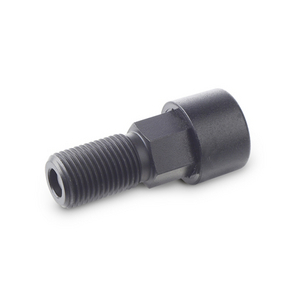

Șuruburi de blocare Elesa+Ganter GN 514-8-AK

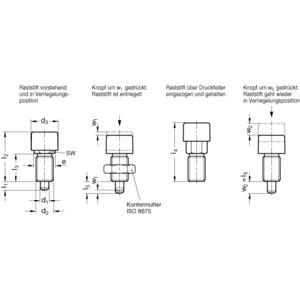

The indexing pin in the locking plungers GN 514 is moved via a so-called cardioid mechanism. This mechanism means that the indexing pin is both extended and retracted alone by pressing the operating button (PUSH-PUSH locking mechanism). Please note that the indexing pin cannot absorb any axial forces and that it retracts virtually by spring action; the indexing pin must therefore remain free and easy to move.
