Furtun standard en/sae Parker 471TC-6

    Parker Hannifin Standard Hose

    Vedeți informațiile tehniceVezi documentele

    Referințe

    Parker:471TC-6
    Rubix:d1146346
    Producator:471TC-6
    brand logo

    rezumat tehnic

    Diametrul interior9.5 mm
    Vezi toate Caracteristice

    Documente

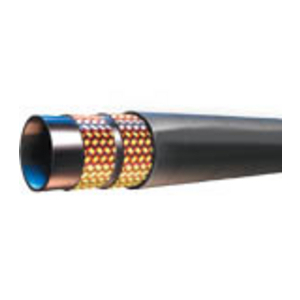

    Detalii produs : PARKER 471TC-6 - EN/SAE STANDARD HOSE PARKER 471TC-6

    Parker's 471 hose is a hydraulic industry standard hose that has a pressure range of 2500-5800 PSI, with a synthetic rubber inner tube which provides wide fluid compatibility. The 471 hose is designed, built, and tested to meet ISO 11237 Type 2SC, SAE J1942, and EN 857 Type 2SC specifications. The two-wire braided construction offers more flexibility than the standard spiral counterpart in order to fit your needs. Sizes range from ¼” to 1” in diameter with different cover options available for various markets.

    Puncte forte

    •ToughCover or SuperTough cover options to prevent abrasion
    Half SAE bend radius for ease of installation and low force to flex
    2500-5800 PSI working pressure in different sizes
    2-wire braided compact construction offers more flexibility
    Smaller O. D. for ease of installation

    Aplicații

    Lubricants;Petroleum Hydraulic Fluids;Lubricating Oils;Petroleum Base Hydraulic Fluids;Transportation;Military;Agriculture;Forestry;Utility Equipment;Waste & Refuse;Material Handling;Industrial

    Informații tehnice

    atribute
    Diametrul interior9.5 mm
    Raza curbei65 mm
    • Disponibil – Data livrării la cerere
