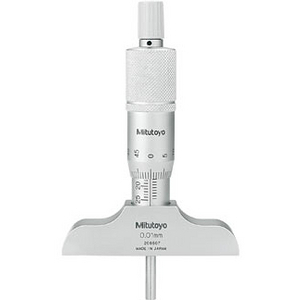

Micrometru de adâncime mecanic/digital și micrometru cu laser Mitutoyo 128-102
Depth Micrometer
Vedeți informațiile tehniceVezi documenteleReferințe
Mitutoyo:128-102
Rubix:d898213
EAN:4946368016252
rezumat tehnic
| Interval de măsurare, minim | 0 mm |
|---|---|
| Interval de măsurare, maxim | 25 mm |
| Diametrul tijei de măsurare | 4 mm |
Documente
Detalii produs : 128-102 MITUTOYO - MECHANICAL/DIGITAL DEPTH MICROMETER AND LASER MICROMETER MITUTOYO 128-102
This micrometer allows you to measure depth and offers you the following features:
ø4mm measuring rod.
Ratchet stop provides you with constant measuring force.
Measuring rod lock.
Carbide-tipped measuring rod model is available.
Puncte forte
The ratchet ensures a constant measuring force.
Aplicații
Series 128 - Fixed stem model Technical specifications : Micrometer screw capacity: 25 mm Drum revolution: 0.5 mm, with spindle lock Accuracy (excluding counting error): ±3 'm (0-25 mm) Graduations: Drum and sleeve graduated, matte chrome-plated, ø 18 mm Flatness of the base: 1.3 'm (for 63.5 mm), 2 'm (for 101.6 mm) Flatness of the stem: 0.3 'm Parallelism between the base and the stem: (4+L/50) 'm L = maximum measuring length (mm) Measuring surface: carbide, ground, finely lapped Base: heat-treated steel Measuring force: 5-10 N Reading: 0.01 mm Supplied: Case, box or packaging
Informații tehnice
atribute
| Interval de măsurare, minim | 0 mm |
|---|---|
| Interval de măsurare, maxim | 25 mm |
| Diametrul tijei de măsurare | 4 mm |
| Lungimea tălpii | 101.6 mm |
| Numărul de tije de măsurare | 1 |
| Cutie | da |
| Absolvire | 0.01 mm |
