Rulment cu role conice Timken 749S-90051, Diametrul exterior: 155.575 mm | Diametrul interior: 85.026 mm | Lățime: 101.6 mm

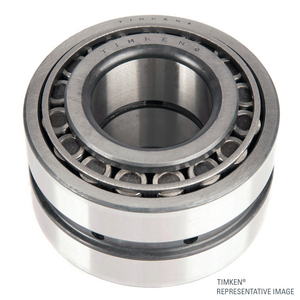

Tapered Roller Bearing Double Cup Assembly
Vedeți informațiile tehniceReferințe
Timken:749S-90051
Rubix:d481734
Producator:100096815
EAN:0053893082882
rezumat tehnic
| Diametrul interior | 85.026 mm |
|---|---|
| Diametrul exterior | 155.575 mm |
| Lățime | 101.6 mm |
Detalii produs : 749S-90051 TIMKEN - TIMKEN 749S-90051 TAPERED ROLLER BEARING
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Puncte forte
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Aplicații
Heavy-duty gear drives; Various industrial configurations
Informații tehnice
atribute
| Logistică Dimensiuni (L x W x H) | 101,6x155,575x155,575 mm |
|---|---|
| Logistic Greutate | 7768 g |
| Dimensiunile Packaged (D x W x H) | 107,95x171,45x171,45 mm |
| greutate ambalate | 7767,8 g |
| Diametrul interior | 85.026 mm |
| Diametrul exterior | 155.575 mm |
| Lățime | 101.6 mm |
| Tipul jocului rulmentului | cn |
A arăta UNSPSC / ECL@SS
- Disponibil – Data livrării la cerere
