Rulment cu role conice Timken 28318D, Diametrul exterior: 80.035 mm | Diametrul interior: 34.976 mm | Lățime: 34.925 mm

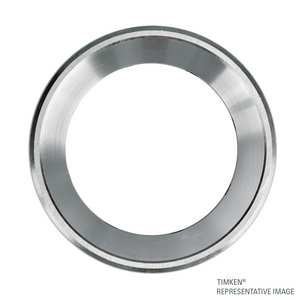

Tapered Roller Double Cup Component
Vedeți informațiile tehniceReferințe
Timken:28318D
Rubix:d484583
Producator:100049689
EAN:0053893230979
rezumat tehnic
| Diametrul interior | 34.976 mm |
|---|---|
| Diametrul exterior | 80.035 mm |
| Lățime | 34.925 mm |
Detalii produs : 28318D-20081 TIMKEN - TIMKEN 28318D-20081 TAPERED ROLLER BEARING DOUBLE CUP
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Puncte forte
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Aplicații
Heavy-duty gear drives; Various industrial configurations
Informații tehnice
atribute
| Logistică Dimensiuni (L x W x H) | 34,925x80,035x80,035 mm |
|---|---|
| Logistic Greutate | 432 g |
| Dimensiunile Packaged (D x W x H) | 87,884x87,884x37,846 mm |
| greutate ambalate | 432,3 g |
| Diametrul interior | 34.976 mm |
| Diametrul exterior | 80.035 mm |
| Lățime | 34.925 mm |
| Tipul jocului rulmentului | cn |
| Greutate | 0.44 kg |
| Serie | 28000 |
| Cușcă | oțel |
| Lățimea totală a rulmentului | 46.04 mm |
| Sarcină dinamică de bază, radială - Cr | 111000 N |
A arăta UNSPSC / ECL@SS
- Disponibil – Data livrării la cerere
