Rulment cu role conice Timken 48290-30000, Diametrul exterior: 155.194 mm | Diametrul interior: 127 mm | Lățime: 38.1 mm

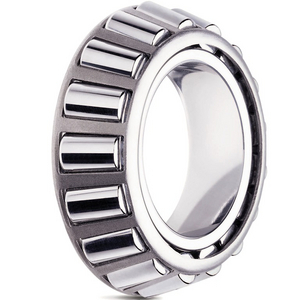

Precision Tapered Roller Bearing Cone
Vedeți informațiile tehniceReferințe
Timken:48290-30000
Rubix:d482634
EAN:0053893309231


rezumat tehnic
| Diametrul interior | 127 mm |
|---|---|
| Diametrul exterior | 155.194 mm |
| Lățime | 38.1 mm |
Detalii produs : 48290-30000 TIMKEN - TIMKEN 48290-30000 PRECISION TAPERED ROLLER BEARING CONE
Timken’s high-precision tapered roller bearings consist of carefully matched components that offer an added degree of fine-tuning in the bearing setting and adjustment procedure to maximize customer machine productivity. Timken manufactures high-speed designs with a variable preload capability for optimum performance. Timken also manufactures Precision Plus bearings – having an overall radial runout less than a single micron.
Puncte forte
In particular, precision tapered roller bearings feature: Tighter manufacturing specifications resulting in greater rotational accuracy; Reduced tolerances on bore and outside diameter creating improved performance in high speed, high temperature applications; Straight race and/or roller profile designs (versus crowned profile designs) for increased accuracy and rigidity; Controlled machining and assembly processes to ensure that components are matched properly and exact specifications are met; High load-carrying capability compared to other bearing types so that fatigue life is enhanced; The ability to be adjusted during installation so that operating torque, shaft rigidity and operating temperature can be precisely controlled.
Aplicații
Machine Tool; Printing Press; Rolling Mill
Informații tehnice
atribute
| Logistică Dimensiuni (L x W x H) | 38,1x155,194x155,194 mm |
|---|---|
| Logistic Greutate | 2043 g |
| Dimensiunile Packaged (D x W x H) | 41,402x184,15x184,15 mm |
| Diametrul interior | 127 mm |
| Diametrul exterior | 155.194 mm |
| Lățime | 38.1 mm |
| Tipul jocului rulmentului | cn |
| Greutate | 6.903 kg |
| Serie | 48200 |
| Cușcă | oțel |
| Sarcină statică de bază, radială - C0r | 493000 N |
| Sarcină dinamică de bază, radială - Cr | 268000 N |
A arăta UNSPSC / ECL@SS
- Disponibil – Data livrării la cerere
