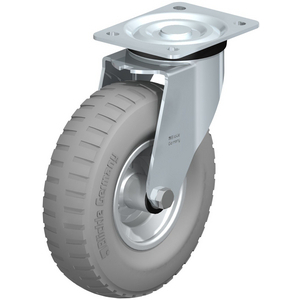

Roată de transport Blickle L-P 222R-SG

Bracket: L series

• pressed steel, zinc-plated, blue-passivated, Cr6-free
• double ball bearing in the swivel head
• strong central kingpin (from wheel Ø 150 mm)
• swivel head seal
• minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Wheel: P series

• tyre: pneumatic tyre, hardness 65 Shore A, colour grey, non-marking, 2-ply rating
• rim: pressed steel, with welded tubular steel hub, zinc-plated, blue-passivated, Cr6-free
• swivel castors with brakes lose brake force if the tyre pressure is too low

Other features:

• chemical resistance to many aggressive substances, except oils
• operating temperature: -25 °C to +50 °C
• the wheel and tyre dimensions provided here apply to new tyres that are not bearing a load. Their width and diameter may change when they are in use.
• speeds up to 16 km/h possible for wheels with ball bearing and reduced load capacity
