Rulment cu role conice Timken 22150DA, Diametrul exterior: 82.55 mm | Diametrul interior: 38.1 mm | Lățime: 72.233 mm
Tapered Roller Double Row Cone
Vedeți informațiile tehniceReferințe
Timken:22150DA
Rubix:d482687
Producator:100047456
EAN:0053893204529
rezumat tehnic
| Diametrul interior | 38.1 mm |
|---|---|
| Diametrul exterior | 82.55 mm |
| Lățime | 72.233 mm |

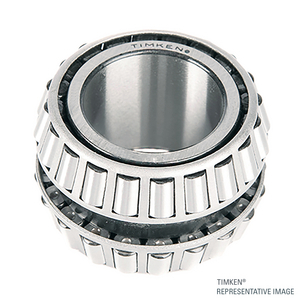

Detalii produs : 22150DA-40287 TIMKEN - TIMKEN 22150DA-40287 TAPERED ROLLER BEARING DOUBLE CONE
TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
Puncte forte
Double cone and two single cups, with or without a cup spacer. Furnished as a matched assembly. Cups ground to fit
Aplicații
Gear reduction units; Calendar rolls; Industrial machinery
Informații tehnice
atribute
| Logistică Dimensiuni (L x W x H) | 72,136x60,452x60,452 mm |
|---|---|
| Logistic Greutate | 876 g |
| Dimensiunile Packaged (D x W x H) | 106,3752x106,3752x68,4276 mm |
| greutate ambalate | 875,9 g |
| Diametrul interior | 38.1 mm |
| Diametrul exterior | 82.55 mm |
| Lățime | 72.233 mm |
| Tipul jocului rulmentului | cn |
| Greutate | 0.948 kg |
| Serie | 22000 series |
| Cușcă | oțel |
| Lățimea totală a rulmentului | 38.11 mm |
| Standard | ABMA PRECISION RATING KLASSE 4 |
